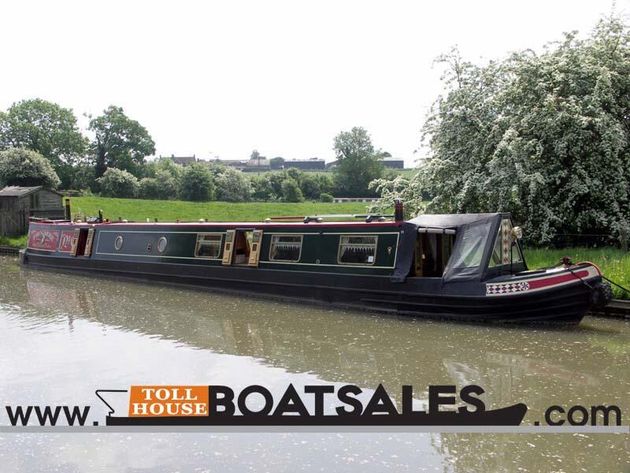

Narrow Boats > Traditional > 65ft Steve Priest Gardner 2L2
  Printer Friendly Version

Click for full size image
View Full Size Image
Click for full size image
View Full Size Image
Click for full size image
View Full Size Image
Click for full size image
View Full Size Image

Description

A 65ft trad with Boatman's Cabin built in 2003 by Steve Priest of Brinklow Boats and fitted by DB Boatfitting (Braunston): Engine: Gardner 2L2 (Tony Redshaw) Bowthruster: Nobels Hydraulic Plating: 10/6/5/4 Fit-out materials: Main cabin: oak, mahogany inlaid marquetry . BMC/Engine Room fully panelled and scumbled Roses/Castles Insulation: Spray foam. Headroom: 6ft 2in Berths: 2+4 Berth sizes: 6ft 4in x 4ft 0in perm double, 6ft 3in x 4ft 0in curved dinette double, 6ft x 3ft 11in boatmans cross bed (or long single). Mains Power: Landline, Victron Phoenix MultiPlus 12/2500/120, 240v RCD/Multiple sockets. Dolphin M3 cocooned diesel 3.5kVA generator. Cabin heating: Webasto diesel to multiple radiators,Morso Squirrel in saloon and Epping in BMC. Hot Water: Calorifier via Webasto, engine, immersion heater Water tank: S/S 200 gallons Secondry S/S fresh water tank for WC. Galley: Vanette built-in hob /eye-level oven, Microwave, Shoreline Fridge: Candywasher/dryer. Bathroom: Tecma flush to remote holding tank. Shower, Basin: Magnificent steelwork, low sweeping lines to josher bow/Concave uxter plate,long swims fore/aft, recessed rear panels, rep rivets, cratch.All cruising gear warps anchor etc.
"Frogmore" was built to exacting standards with no expense spared, resulting in a very rare and much admired boat. Blacked 2017 Boat Safety Aug 2019.
A well maintained boat, presented for sale in excellent order.

Specifications
Vessel name:Frogmore
Vessel condition:Excellent
Vessel type:Narrowboat
Designer:Steve Priest
Builder:Brinklow Boats
Model:65ft Traditional
Year constructed:2003
Guests:6
Berths:6
Heads:1
Engine model:Gardner 2L2/Tony Redshaw
Engine power:20@1000 rpm HP
Fuel type:Diesel
Crusing Speed:4 Knots
Maximum Speed:6 Knots
Nominal length:65'
Length over all:65'
Beam:6' 10"
Maximum draft:2' 10"
Hull material:Steel
Hull type:Flat
Displacement:22 metric tons
Fuel capacity:250 Litres
Water capacity:200 Gallons
Holding tank capacity:150 Gallons

Engine(s)

Gardner 2L2 vintage engine fully restored and fitted by Tony Redshaw with electric start. PRM 500D gearbox 1:5 drives 2" shaft to 22" propeller. PTO from gearbox drives hydraulic bowthruster.Sealed skin tank cooling system.
90A alternator, 2.5KW/120A Victron Inverter/Charger, 230V shore connection. Batteries 1 Starter 6 Domestic, Galvanic isolator.
Dolphin 3.5Kva diesel cocooned generator in engine room with remote in galley.
Webasto diesel heating to 5 Radiators

Gardner 2L2
Gardner 2L2
Speed Wheel
Speed Wheel

Construction:

Hull to original thicknesses 10/6/5/4 first registered 2003. Last blacked 2017. Glazed cratch & windowed vinyl cover, Gold finished aluminum hopper windows with brass portholes aft. Engine pidgeon box (Ron Hough), prism light, brass vents. Timber effect fwd & aft bulkheads & back cabin recessed panels. Replica rivets, long swims fore & aft, curved uxter plate (above propeller). Stainless Anser pins aft port & stbd. Foredeck mast/Brass headlight.
Livery: Dark & Light grey roof, dark green sides, red aft panels, cream & red coach lines. Traditional geometric panels

Engine Doors
Engine Doors
Recessed Panels
Recessed Panels

Rear Hatch
Rear Hatch
Josher Bow
Josher Bow

Accommodation

Fit out: DB boatfitters to an exceptional, finely detailed standard. Scumbled panelling & decorated boatmans & engine cabins. Elsewhere: light oak-faced panelling to deckhead, upper & lower sides & bulkheads.
Dark hardwood deckhead beams. Contrasting inlays. Panelled & boxed radiators.

Boatman's Cabin Aft
Boatman's Cabin Aft
Boatman's Cabin Fwrd
Boatman's Cabin Fwrd

Engine Room Fwrd
Engine Room Fwrd
Engine Room Aft
Engine Room Aft

Bedroom Aft
Bedroom Aft
Bedroom Fwrd
Bedroom Fwrd

Bathroom
Bathroom
Basin Loo
Basin Loo

Shower
Shower
Galley
Galley

Galley Fwrd
Galley Fwrd
Galley Aft
Galley Aft

Fridge
Fridge
Sink
Sink

Washing Machine
Washing Machine
Dinette Fwrd
Dinette Fwrd

Dinette Aft
Dinette Aft
Saloon Aft
Saloon Aft

Saloon Fwrd
Saloon Fwrd
TV Console
TV Console

Morso Squirrel
Morso Squirrel
Cratch Area
Cratch Area


Navigation Equipment

All cruising gear. Warps, Mooring pins ,Chains and Armco clips.

Safety Equipment

Boat Safety Equipment

Further Information

Status: Available
Price:GBP 97,500

Location: NN67PE Northamptonshire UK
Advertiser: Tollhouse Boat Sales
Reference: Frogmore
Telephone: 07836 310 372
Contact: [ Send Enquiry ]
